Knife Maker's Mark for Jay Fisher Knives

Jay Fisher - World Class Knifemaker

"Flamesteed" obverse side view in mirror finished, hot blued O1 high carbon tungsten-vanadium tool steel blade, hand-engraved 304 stainless steel bolsters, Bird's Eye Rhyolite gemstone handle, hand-carved, hand-dyed leather sheath
Flamesteed
The Finest Knives and YOU

Macha

"Macha" PSD combat, defense, tactical knife: 440c high chromium stainless steel blade, 304 stainless steel bolsters, canvas micarta phenoic handle, kydex, aluminum, blued steel sheath, crocodile, leather sheath
"Macha" Tactical PSD, Combat, Defense, Tactical Knife
  • Size: Length overall: 11.75" (29.8 cm), Blade Length: 6.6" (16.8cm), Thickness: .254" (6.45 mm)
  • Weight: Knife: 15.6 oz., Kydex Sheath: 12.0 oz., Crocodile Sheath: 9.5 oz.
  • Blade: 440C High Chromium Martensitic Stainless Steel, Hardened and Tempered to Rockwell C59, bead blasted, machine-engraved
  • Bolsters, Fittings: Machine-engraved 304 Austenitic High Nickel, High Chromium Stainless Steel
  • Handle: Canvas Micarta Phenolic, Bead-blasted
  • Sheath: Kydex, Aluminum, Blued Steel
  • Sheath: Crocodile Skin Inlaid in Hand-Carved Leather
  • Knife: "Macha," pronounced mak-kha, is named for the Celtic goddess of war. This design was custom made for a Private Security Detail (or Principal Security Detail) operator in Baghdad, Iraq. These are the guys that personally protect and care for the most important people and diplomats in the heart of conflict. There are very few people who put themselves on the line this way, and it deserves special tools. The knife was designed for emergency hand to hand combat, so I made it of hefty, 1/4" thick high chromium 440c martensitic tool steel, hardened and tempered for maximum hardness and toughness. The blade is deeply hollow ground for a very thin, sharp cutting edge, and features a two-thirds length top swage to decrease the cross-sectional profile of the point, allowing maximum penetration geometry without sacrificing spine strength. The knife has two inches of my vampire rip teeth, the most aggressive serrations I've ever seen on any knife. The owner wanted a fully protective guard for this prototype, so the full tang supports a large and thick pair of 304 austenitic high chromium, high nickel stainless steel bolsters. They are fully carved for a firm, positive, comfortable grip in either a traditional or tactical grip style. The bolsters are dovetailed to lock into a tough bead blasted linen-reinforced micarta phenolic handle, further secured with six 304 stainless steel through-pins. The tang of this knife is fully tapered for weight balance, and features full filework that helps increase grip security as well as adding beauty and a unique touch. The knife is machine-engraved with the Shark team emblem and text, and the brass engraved flashplate on the sheath is removable for subdued wear.
  • Sheath (Kydex): The knife is ready to be deployed from a double thickness kydex sheath, built over a 5052H32 corrosion resistant aluminum welt frame, secured with blued steel Chicago screws. The sheath has several mounting options, from belt loops to flat aluminum tension straps for Mollie webbing.
  • Sheath (Leather, Crocodile): After a couple tours in Iraq, the owner wanted me to make an additional artistic sheath for nice display and carry. He is and American with Australian roots, so he sent me some crocodile skin to work with. The sheath is 9-10 oz. leather shoulder, hand-carved and inlaid with crocodile skin panels, front and back. The croc makes a beautiful sheath!
  • After Deployment: Since he had returned the knife to pattern the sheath, I took the opportunity to photograph the knife so others can see just what a couple years of battle will do to a finely made knife. The pictures are below. Other than some obvious scuffing of the sheath and a few sliding marks on the big bolsters, the knife looks like the day it left the shop. This is a great testimonial to a fine weapon and tool!
  • This is as serious as a combat knife can get!

Thanks, T. M.!

Please click on thumbnail photos

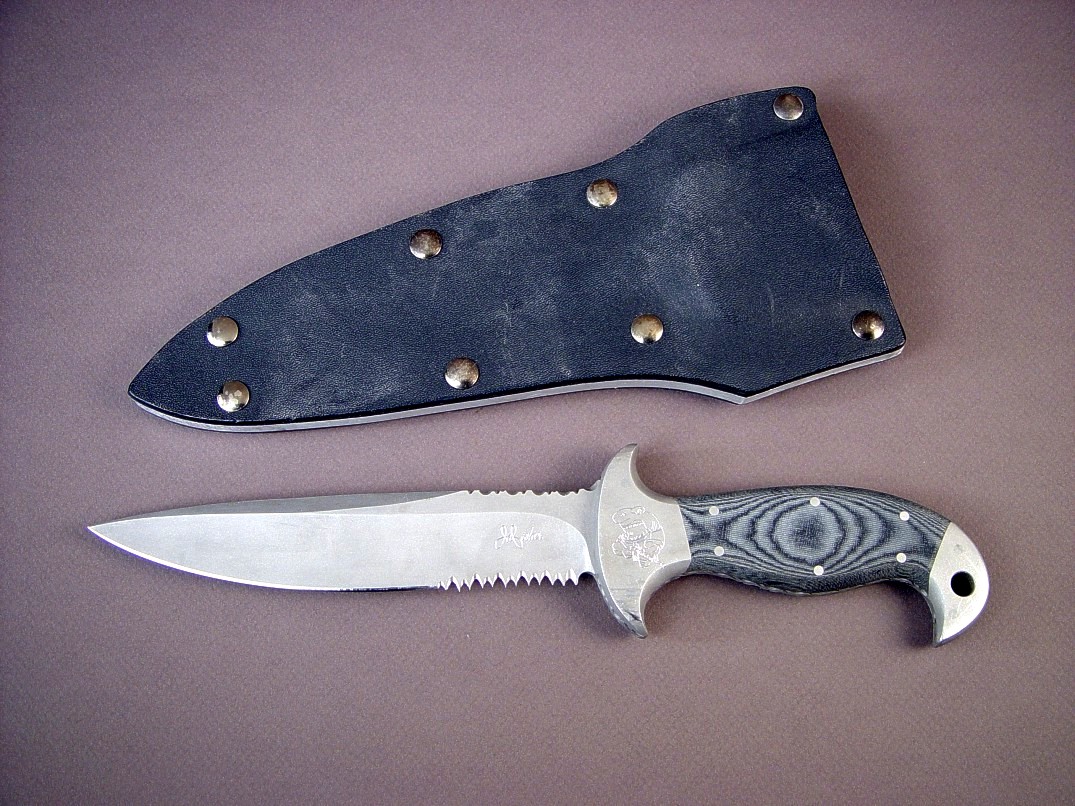

"Macha" PSD combat knife, reverse side view. Note belt clamps on kydex sheath, machine engraving on blade grind and bolsters "Macha" PSD combat knife, spine edgework, filework detail. Deep filework helps with grip security "Macha" blade engraving close up detail. Note also "vampire" rip teeth serrations "Macha" 304 stainless steel machine-engraved bolster detail "Macha" sheathed view. Note deep sheath with plenty of handle protruding for quick grab. The engraved brass flashplate is removable for subdued wear. PSD Macha: In service in Baghdad, Iraq
Knife After Deployment in Combat:

"Macha" PSD combat tactical knife obverse side view: after deployment in battle. Sheath is scarred, but knife is in great condition! "Macha" PSD combat tactical knife reverse side view after long deployments in Iraq battle. "Macha" PSD combat tactical knife after deployment in battle, bolster close up detail. Note scuffing on bolster faces where sheath contact is made.
Knife With Crocodile Sheath:
"Macha" PSD combat knife with crocodile sheath, frontal view "Macha" PSD combat tactical knife with crocodile sheath, rear view. Note full coverage inlays of crocodile skin "Macha" with crocodile sheath, edge, welt, sheath construction details "Macha" crocodile sheath front panel inlay detail "Macha" crocodile sheath rear panel detail, inlays on belt loop "Macha" combat, PSD tactical knife, crocodile sheath rear inlay panel detail. Crocodile skin has small dots on scales, not found on alligator or caiman "Macha" crocodile sheath crown panel inlay detail.
